The Breather Changed Colour. Is It Time to Replace It?

Decide whether the unit needs service, then investigate what shortened its life. A fresh breather can solve one problem while leaving another behind.

By Shubham Tamoli
In this article

When a breather that usually lasts months changes colour in three weeks, replacing it is only half the job.

On a busy lubrication round, it is easy to fit the spare, write "breather changed" and move on. But before the old unit goes in the bin, photograph it and check its installation date. Look at the whole reservoir too. You may be about to throw away the best clue to what changed.

There are two decisions on that work order: whether this unit needs service, and why it reached that point so soon. Start with the first, then follow the evidence to the second.

Read the colour for the model in front of you

First find the model number. Trico describes blue to pink and orange to green changes for different Watchdog media. STAUFF describes red to orange for its standard SDB desiccant. A rule remembered from the neighbouring gearbox may belong to a different product. 12

Check the manufacturer's service indication, including how much of the visible media must change. If the label is missing or the housing is too cloudy to inspect, record that and obtain the correct instructions. Solvent cleaning is no shortcut: STAUFF warns that it can damage polycarbonate housings. 3

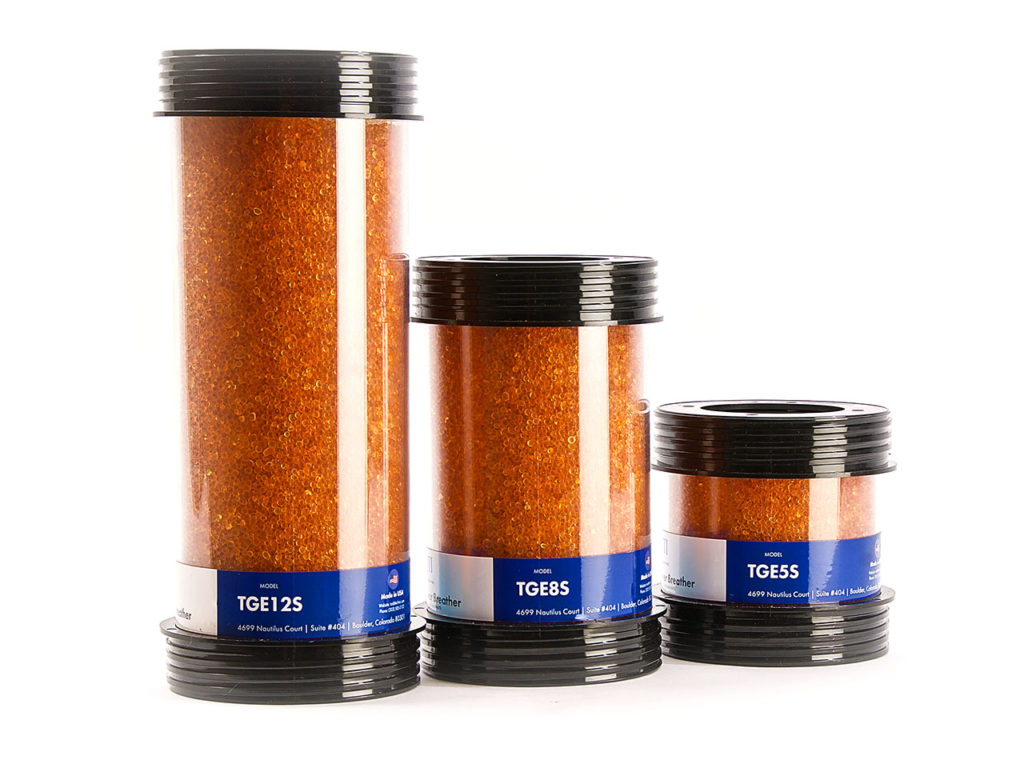

Three transparent desiccant breather models shown together with their housings and visible media
Find the model on the installed unit. Similar housings can use different media and service rules.

The beads cannot answer every question

The colour tells you about the desiccant. Dust in the particle media, a loose connection and water already in the lubricant need their own checks. Treating all three as one inspection is how a fresh breather gets mistaken for a clean bill of health.

At the reservoir

Three checks before closing the job

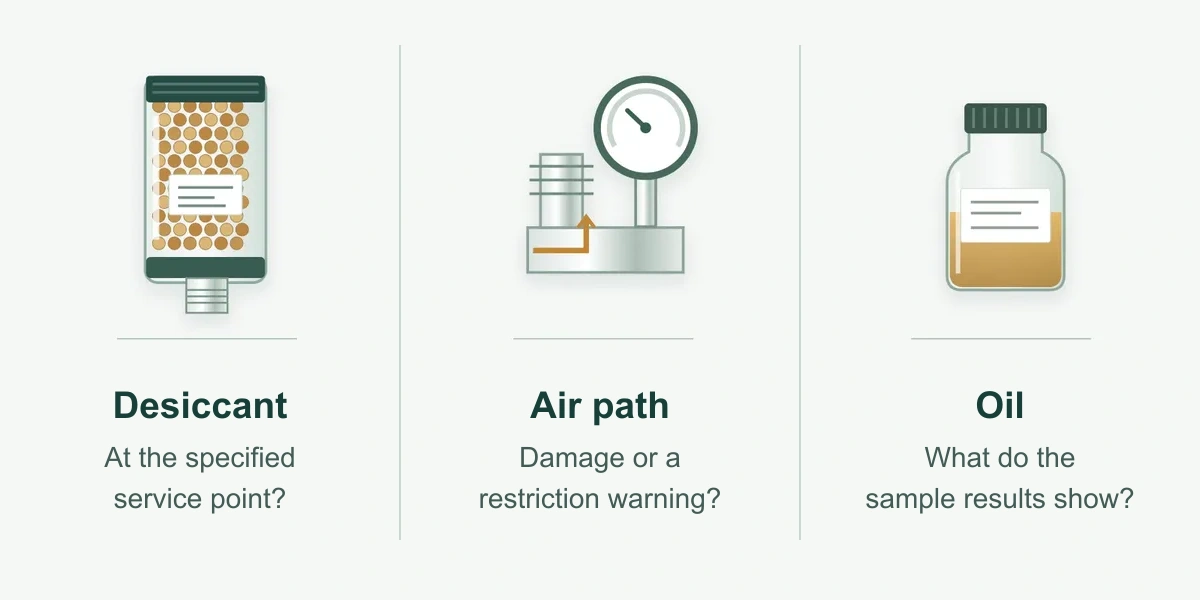

Three inspection questions: has the desiccant reached its specified service point, is there damage or a restriction warning, and what do representative oil tests show?
Record the media indication, inspect the breathing path and use oil tests to judge the lubricant.

Use the equipment and breather manufacturer's service limits, together with your site's oil acceptance criteria.

Make today's service decision

Inspect the intake, housing and connection for dust, cracks, oil wetting or looseness. Read any fitted restriction indicator. Choose the action from what you find:

The service indication has been reached

Arrange the specified replacement or service under the approved isolation procedure. Investigating a short life should not delay required maintenance.

The assembly is damaged or restricted

Correct the defect under the equipment procedure, even if the beads still look unchanged.

The indication is unreadable

Confirm the model and service instructions with the supplier. Resolve the uncertainty before extending the unit's service.

Use a refill kit only for a design intended to take one. STAUFF supplies specified SDB refill and maintenance kits. For a disposable breather, drying the beads is not a complete service: Des-Case explains that the particle media remains loaded, with consequences for airflow. 24

What changed since the last breather?

Once the immediate service is arranged, compare the interval with the previous one. Trico includes an installation date label for this reason. "Three weeks" gives you a period to investigate; "it went quickly" does not. 1

  • Machine duty. Check for more frequent reservoir level changes or a change in operating hours. Review breathing demand against the selected unit's rating.
  • Exposure. Look for changed humidity, washdown or a new source of spray. STAUFF specifically warns against pressure washing the breather. 3
  • Storage and handling. Establish when the spare was opened and whether it was left exposed before installation.
  • Installation. Confirm that the same model was fitted and that its position or connection has not changed.

Start with a change you can date. If a cleaning procedure changed last month, compare that record with the replacement dates and installation photographs. You now have something specific to investigate before ordering a different breather.

Where duty has changed, review airflow and permitted pressure drop as well as the thread size. A unit can fit the connection and still be too small for the application. 3

Follow the incoming air

There is another reason to look beyond the beads. An open filler neck or a leaking seal gives air a route around the breather. Replacing the breather leaves that opening in place. STAUFF identifies alternative air paths as an installation problem. 3

LubeServ bulk lubricant storage unit with individual breathers fitted above the tanks
From the LubeServ catalogueCheck the whole installation

Breathers fitted to a LubeServ storage unit.

Check the filler caps, covers and seals as well as the breather connection.

This check explains whether incoming air can bypass the treatment path. Keep it separate from the investigation into rapid media saturation. For a fuller look at breathing demand and installation, read Every Reservoir Breathes.

Did moisture reach the oil?

If an oil sample already showed abnormal water, a new breather does not remove it. Review the appropriate water and particle results against the site's limits and arrange the required action for the lubricant.

Keep the sampling point and machine condition comparable when checking the result. Record top-ups, oil changes and other maintenance between samples. Otherwise, a change in the sample history can be mistaken for an improvement in the machine. Mobil's sampling guide explains why this context matters. 5

Give the next shift more than "changed"

A useful work order should let another technician follow the decision without starting the investigation again. Four short entries are enough to make the next visit more informative.

What to leave on the work order
Identify
Asset, exact model, installation date and service instruction.
Observe
Colour indication, housing condition, oil wetting and any restriction warning.
Compare
Time in service and changes in duty, exposure or cleaning.
Act
Reason for replacement, correction made, oil follow-up and next review.

Attach a close photograph and one of the complete installation.

If a different unit is being considered, include the lubricant, connection, peak breathing demand, allowable pressure and vacuum, temperature and exposure. That gives the supplier a duty to work with, rather than just a thread to match.

The next time the colour changes, the team should have something better than "we changed one last month" to work from.
